-Support wechat scan code even WiFi, a sweep, immediately online
-Enterprise dual-core 1.6GHz high-end chip, strong performance
-MESH networking is supported to realize the true network zero configuration
-Wireless dual-band 1200Mbps, enjoy 5G high-speed network
-1-4 variable WAN ports, multiple broadband superimposed use
-6 high-gain omnidirectional antennas, 100 stabilized belt machines

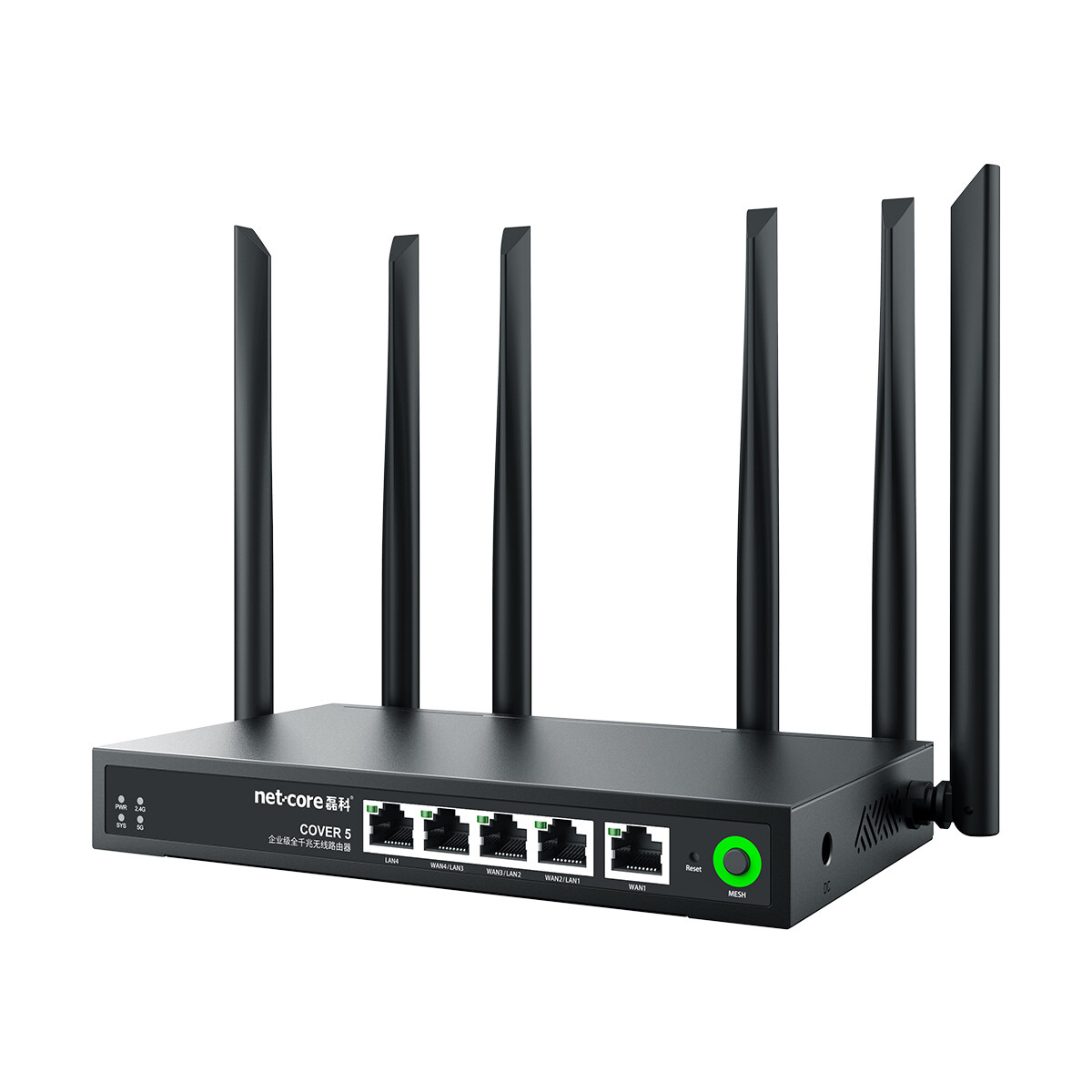

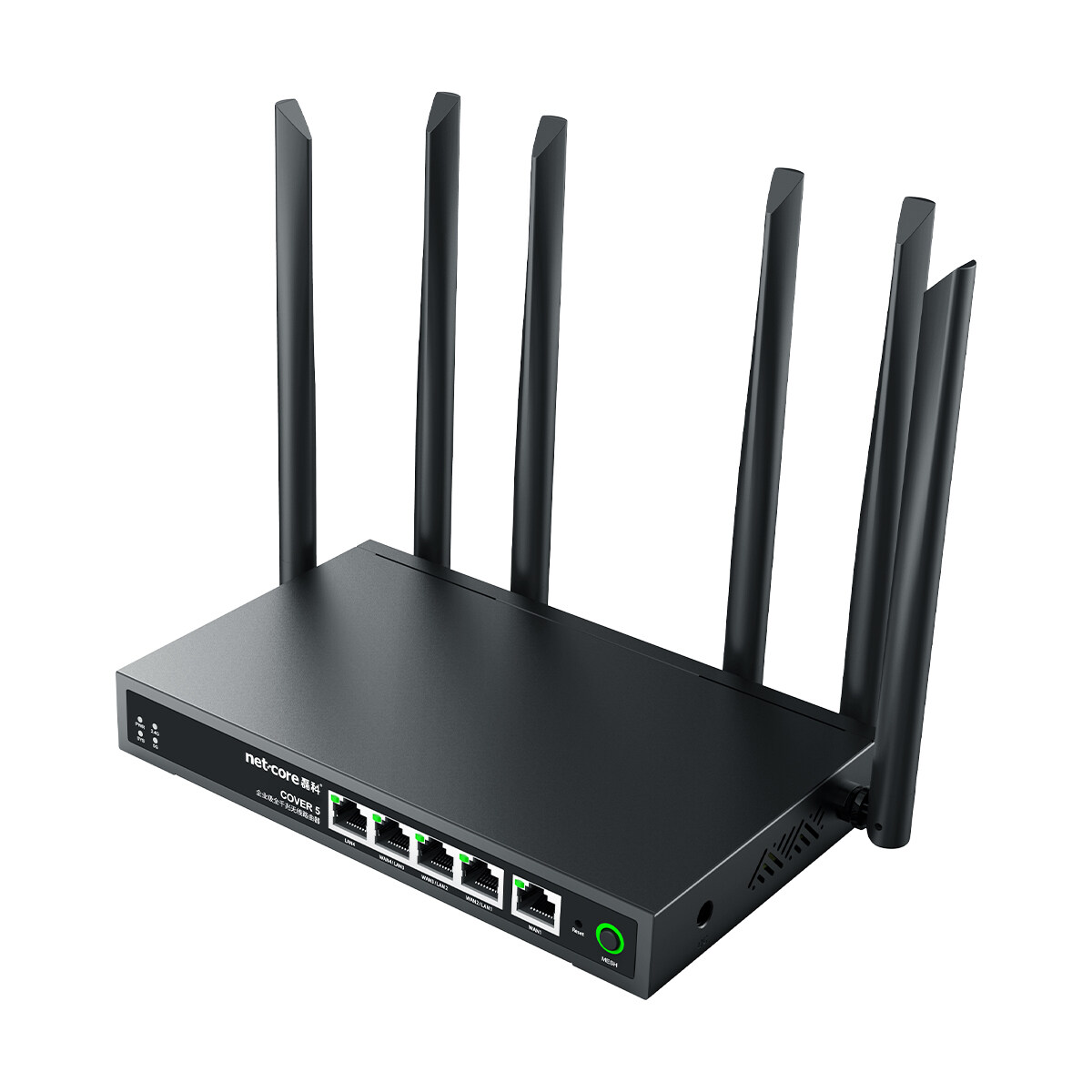

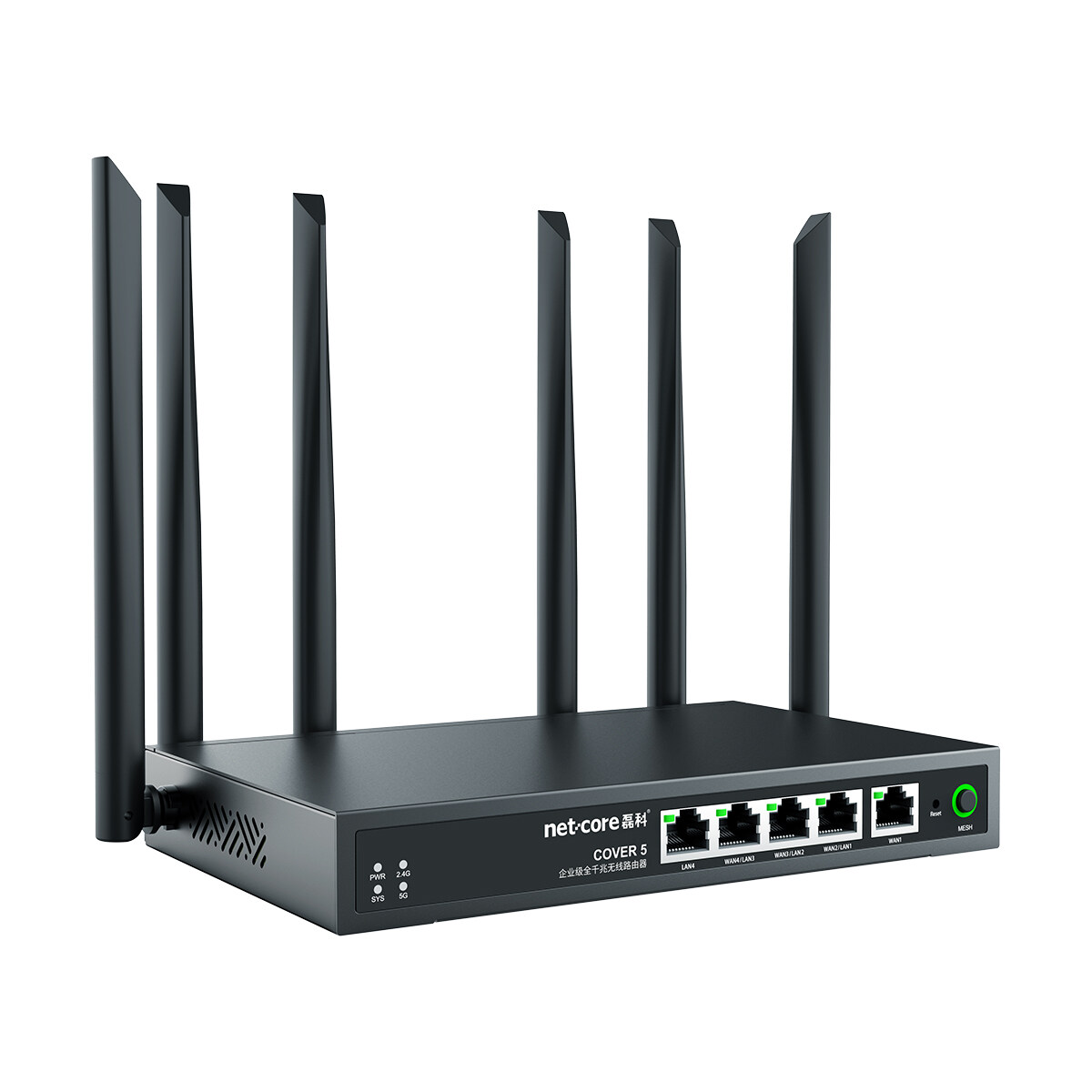

| Product model | COVER 5 |
| Wireless protocol | IEEE802.3,IEEE802.3u,IEEE802.3z ,IEEE802.3x,IEEE802.1x,IEEE802.11 b/g/n/ac |
| Port |
LAN：4*10//100/100/1000M AUTO MDI/MDIX RJ45 ports |
| Forwarding rate | 10/100/1000Mbps |
| Wireless band | 2.4GHz：300Mbps 5GHz：866Mbps |
| CPU | Dual Core 1.6GHz |
| FLASH | 16MB |
| Memory | 128MB |
| Button | 1*RESET , 1*MESH |
| Poert | 12V/1A |
| Size | 200mm×124.4mm×28mm |
| Operating environment | Operating temperature: 0°C ~ 40°C
Storage temperature: -20°C ~ 70°C Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing |
| LED indicator | PWR、SYS、2.4G、5G、WAN1、WAN2/LAN1、WAN3/LAN2、WAN4/LAN3、LAN4 |
| Home page |
Sign out Go to the official website Internet Current internet speed Operation hours Gateway Reboot MESH status MESH management Adding a New node Internet-connected devices Networked devices Intranet settings Internet settings |
| Network |
Signal conditioning Guest network MESH IPTV WISP WPS Advanced settings Access control Policy based routing AC control |
| Application |
Port mapping Dynamic domain name Remote Access |
| System |
Password Management Time settings Initialize Scheduled tasks Firmware upgrade Dial log Router information Indicator |
